Inside Post Mount Kit

Inside Post Mount

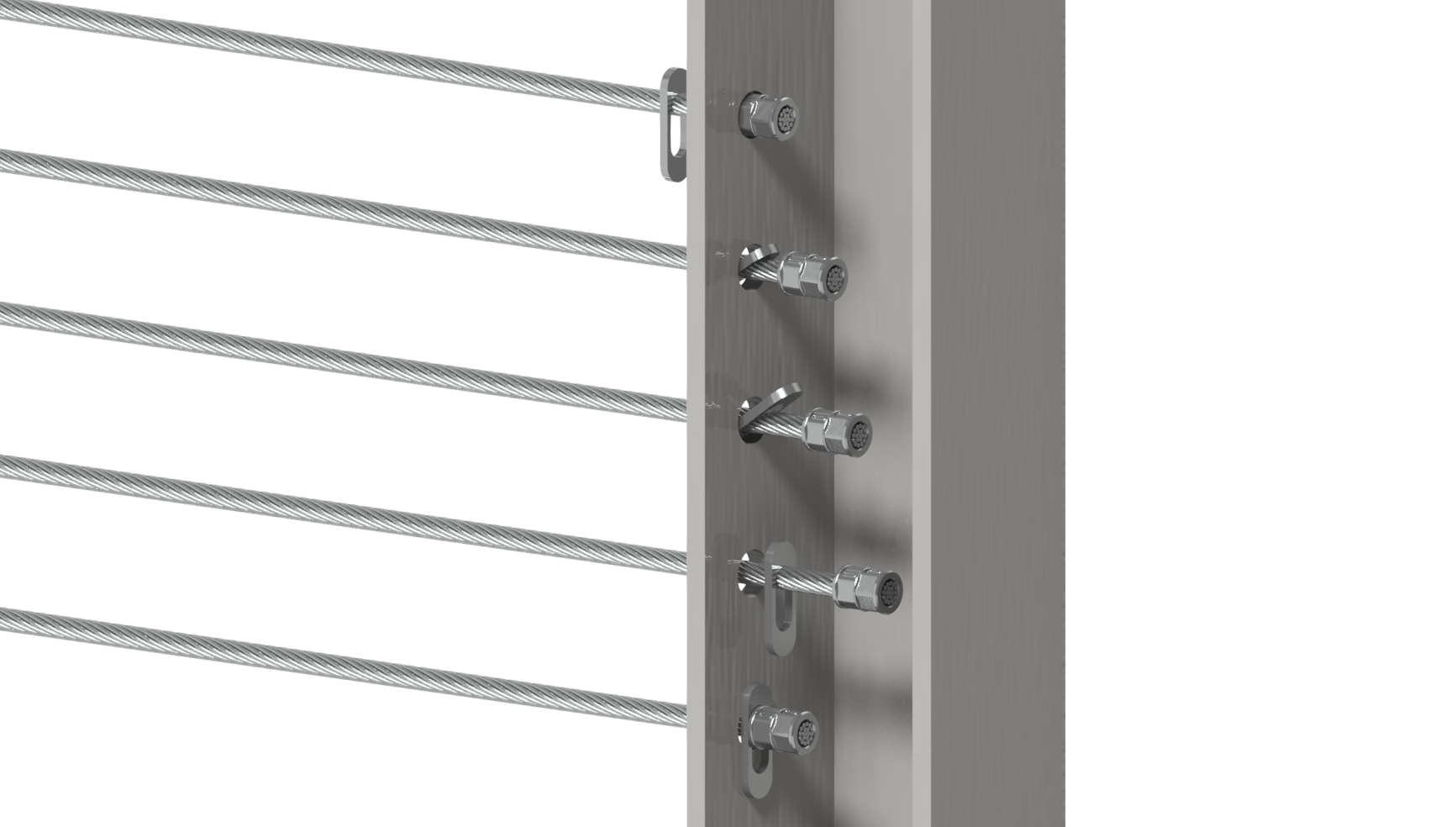

Inside Cable Connection Installed

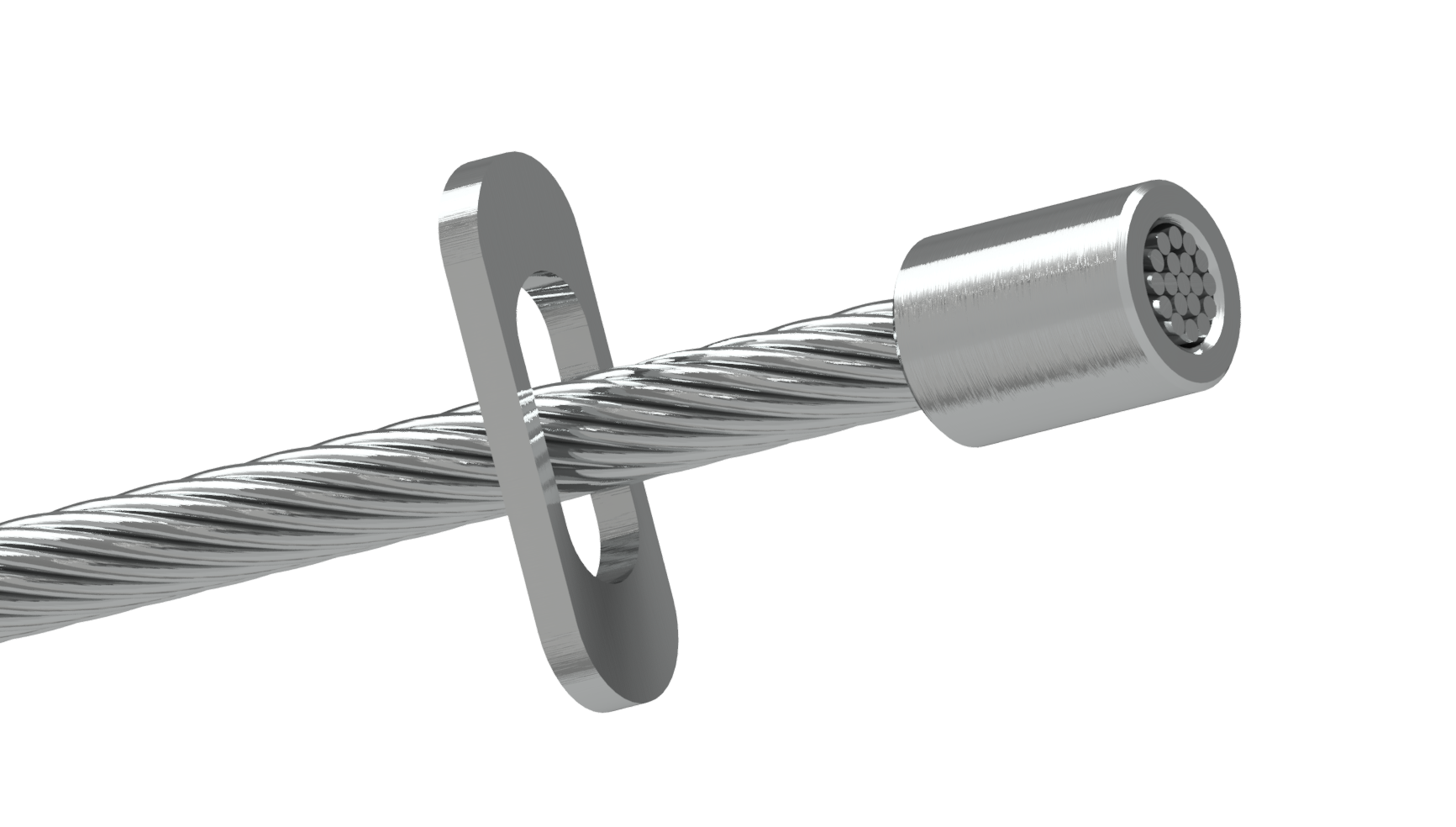

Inside Cable Connection (1)

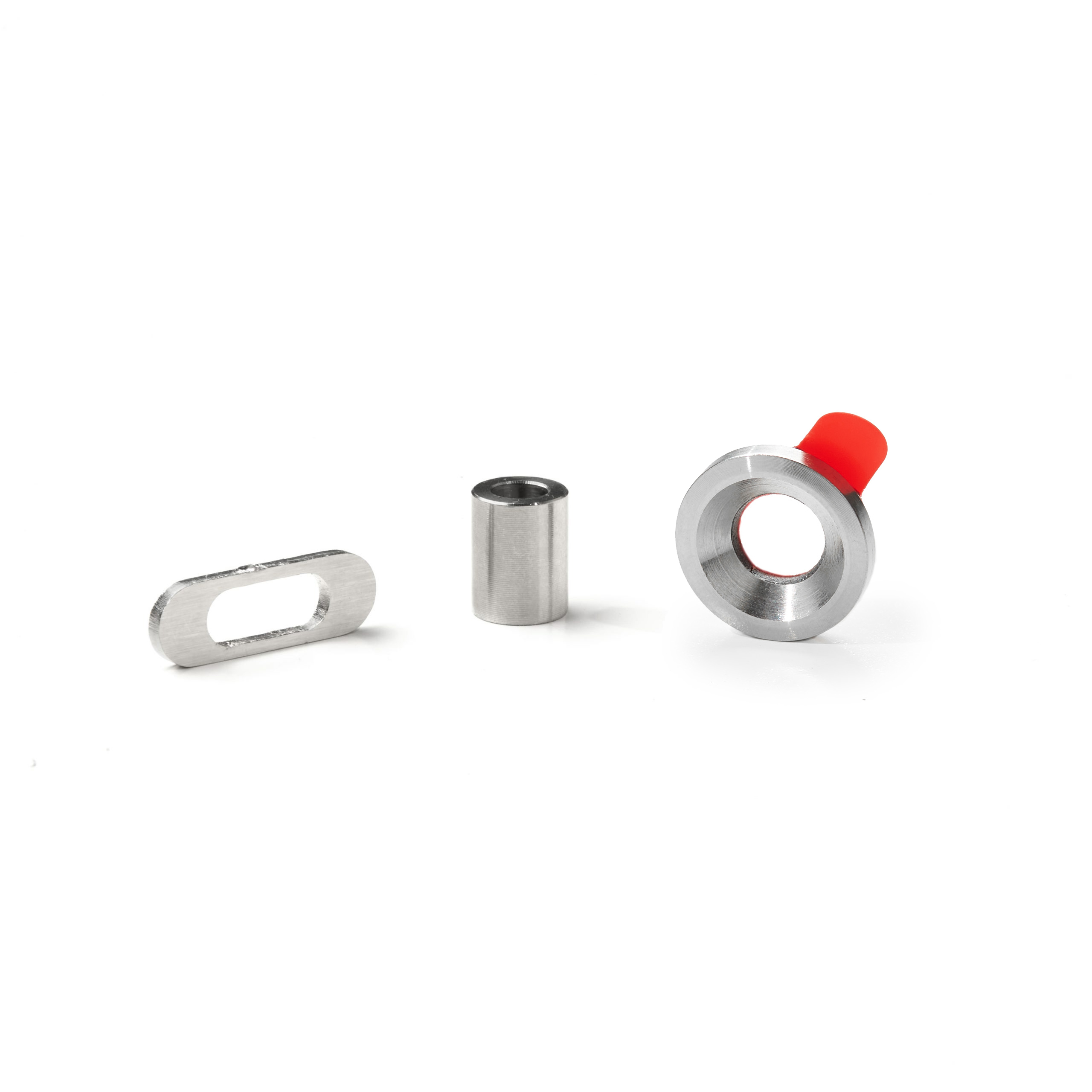

Angle Inside Post Mount Kit

Inside Post Mount Kit

Clear

Current Selection:

Rise & Run Details

Please provide us with a valid stair angle to add this product to your cart.

Please Note - If your staircase contains a variable rise and run from step to step, you will need to work with a Project Manager after the sale to engineer the system.

Please check the box above to acknowledge the statement.

Ships in about 1 Business Day
Need Help?
Request A Quote

Installation Guide

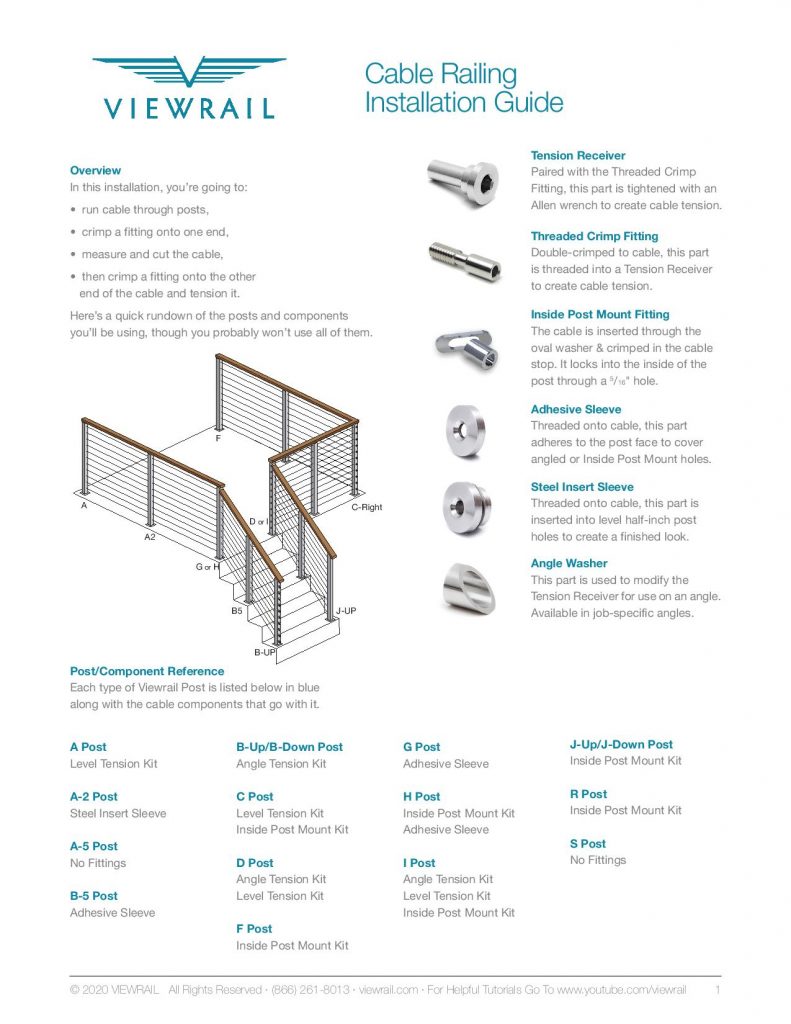

Cable Railing Installation Instructions V5-page-001

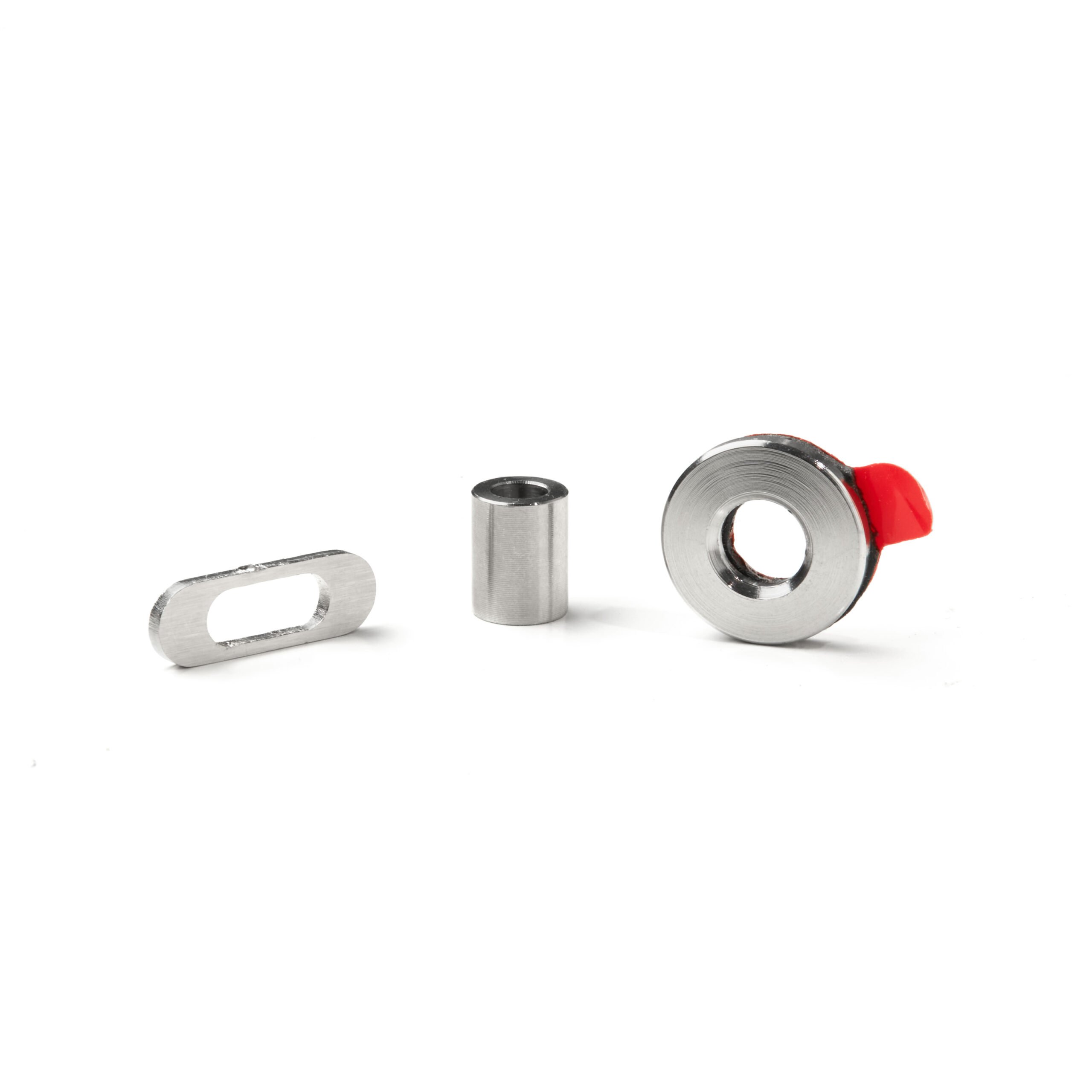

Description

The Inside Post Mount Kit contains the fittings necessary for you to start your cable hidden inside the posts, using a 5/16″ hole  on our C, F, H, & J posts. This kit doesn’t provide ANY tensioning ability, so you must purchase a Level Tension Kit or Angle Tension Kit or the other end of the cable. The washer and cable stop are put into the 5/16″ hole diagonally and lock to the inside of the post to hold the cable while the tension is taken on the other side of the run with a Level or Angle Tension Kit. For angled kits, the adhesive sleeve is beveled on the interior diameter to provide more cable clearance.

1 – Cable Stop

1 – Termination Washer

1 – Adhesive Sleeve

These components are crafted from marine-grade 316 stainless steel for lasting beauty and strength. If you are purchasing our 36″ tall posts purchase a 10 pack for each tensioning post. For 39″ posts purchase a 11 pack, and for 42″ posts purchase a 12 pack.”
