Glass Clip

Glass Clip


Current Selection:

Rise & Run Details

Please provide us with a valid stair angle to add this product to your cart.

Please Note - If your staircase contains a variable rise and run from step to step, you will need to work with a Project Manager after the sale to engineer the system.

Please check the box above to acknowledge the statement.

Ships in about 14 Business Days

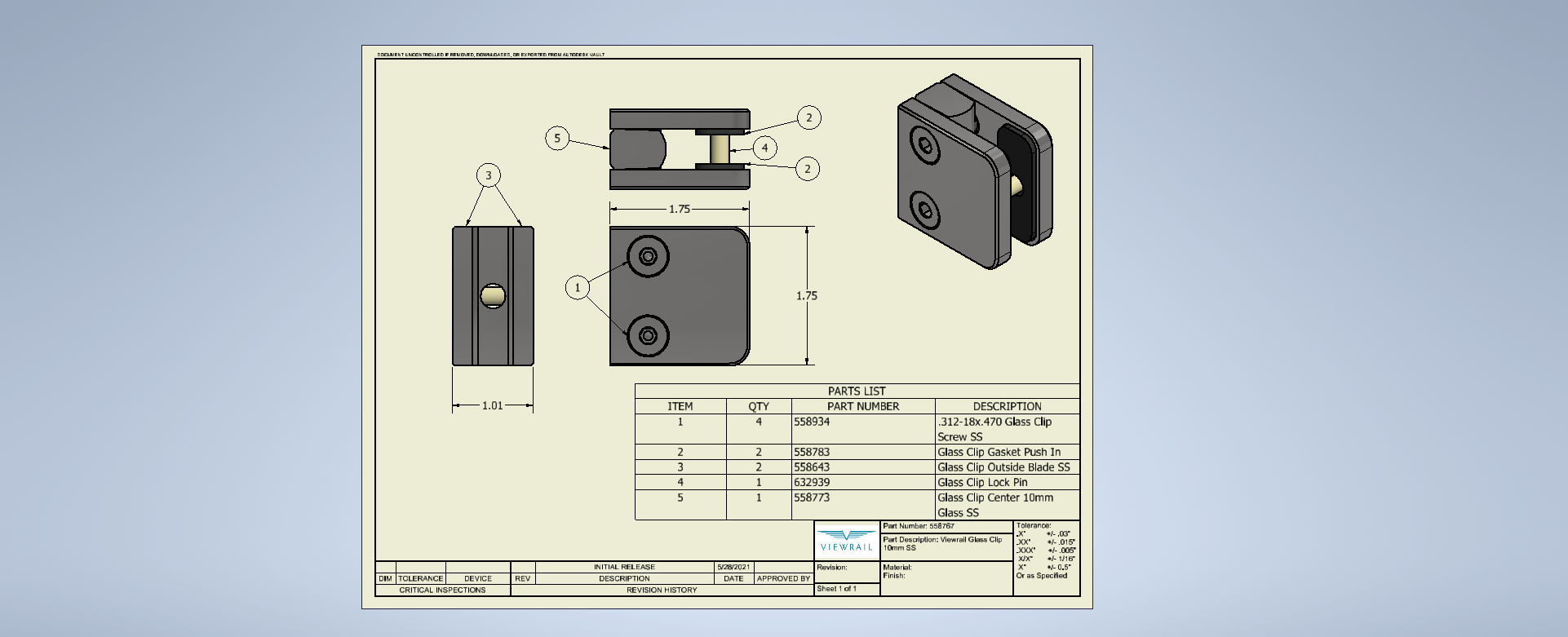

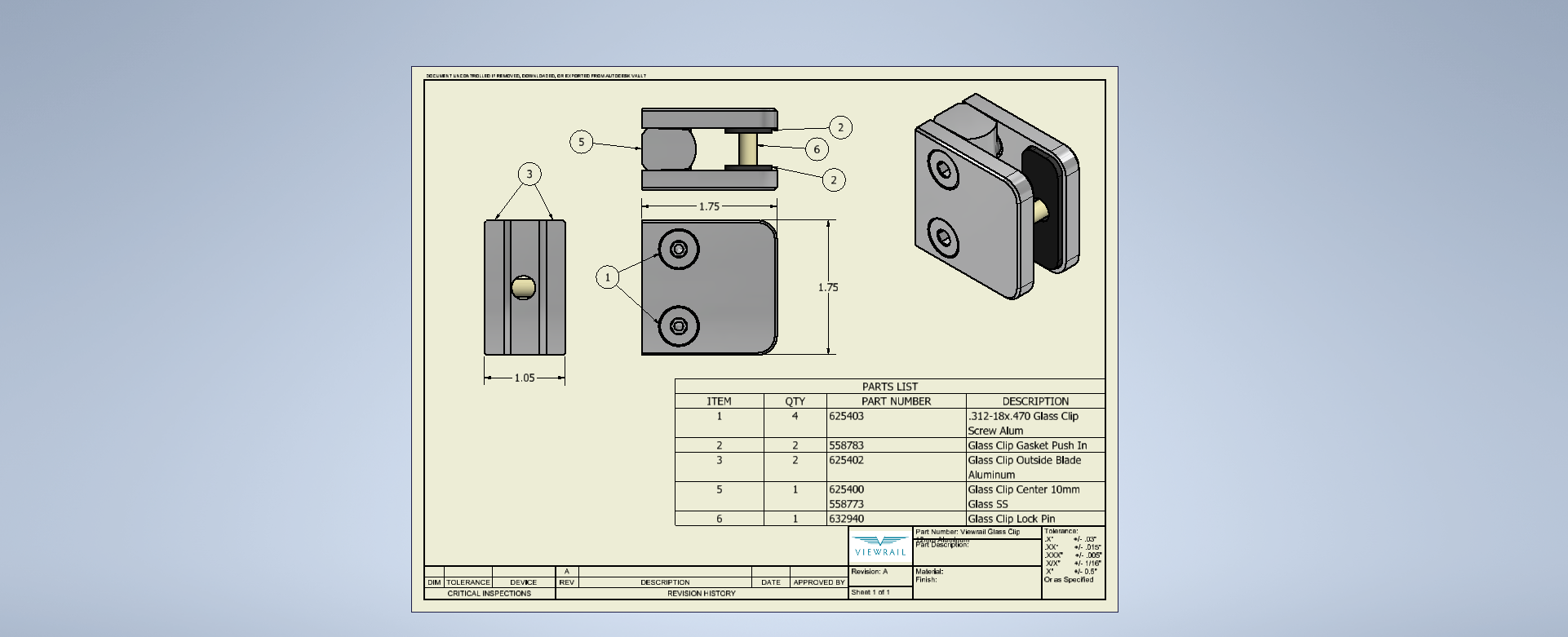

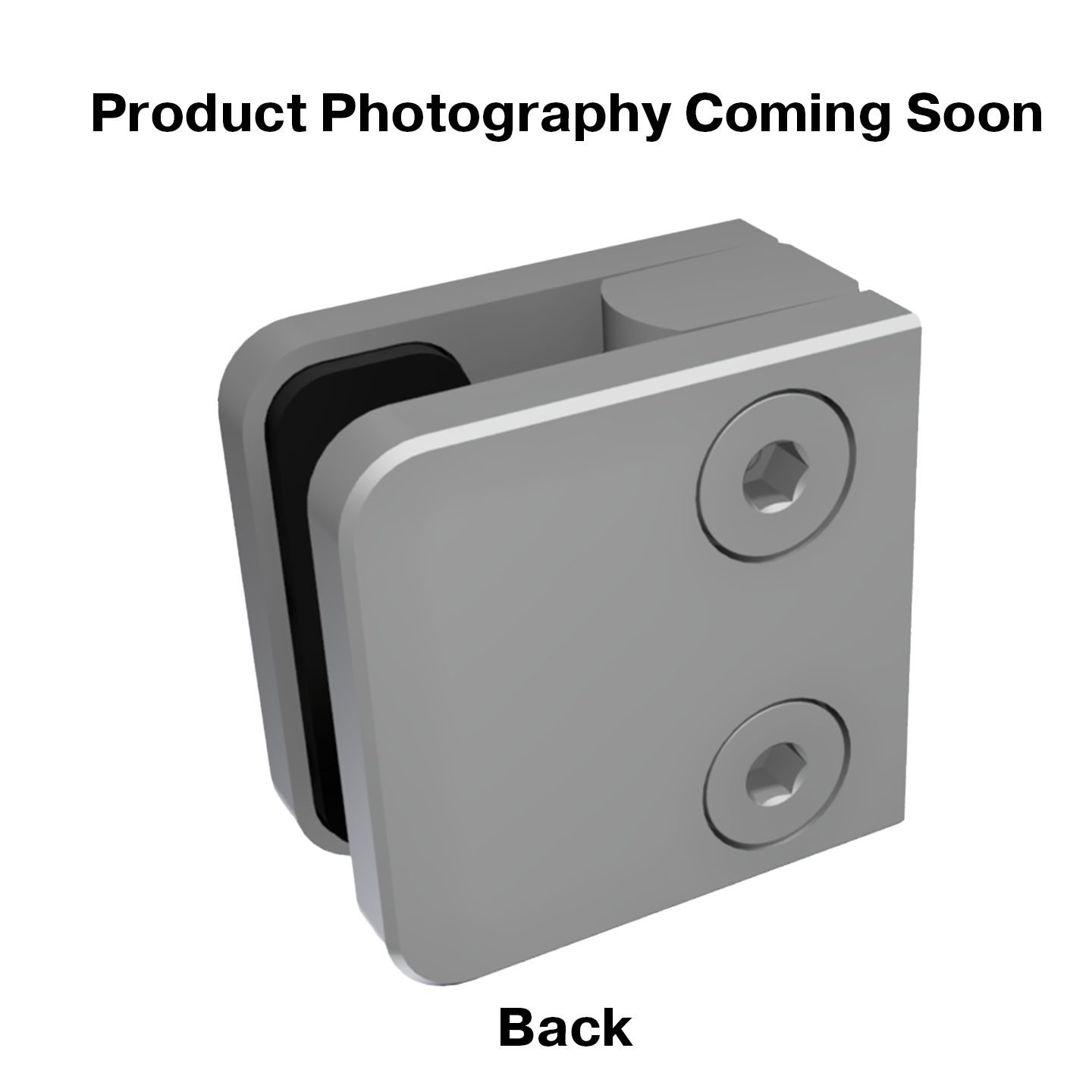

Constructed from 6061 Aluminum and 316 SS glass clips are one of the latest glass hardware pieces that we have been able to manufacture in house instead of purchasing from overseas. These clips have been engineered to be slimmer and smaller than our old clips and provide a square and minimal look as well. These clips can be bolted onto our flow drilled posts or attached to wood posts with lags to hold a variety of thicknesses of glass.

Key Features:

  • 1 3/4″ tall by 1 3/4″ wide
  • This is a 1pk and will require multiple clips per post (we recommend 4 clips per panel)
  • Include 1” Button Head Socket Screws 5/16” Wide
  • Posts are Pre-Drilled for Easy Installation
  • 6061 Aluminum or 316 SS (marine grade)
  • Accommodates 3/8″ (10mm) or 1/2″ (12mm) Tempered glass and 9/16″ laminate glass
